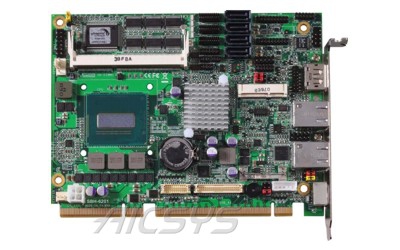

Product Name : SBH-6201
Product Description
- PICMG 1.3 Half-size SBC
- Supports Onboard Intel Core Processor
- Mobile Intel QM87 Express chipset
- Supports DDR3L 1333/1600 SO-DIMM up to 16GB
- Built-in Intel HD 4600 Graphics
- Dual Gigabit Ethernet Controllers
- Watchdog Timer and Hardware Monitoring
Additional Files
Product Information
| CPU | Optional onboard i7-4700EQ and Celeron 2002E Mobile Processor | |
|---|---|---|
| Chipset | Mobile Intel QM87 Express chipset | |
| System Memory | (2) DDR3L 1333/1600 SO-DIMM up to 16 GB | |
| Display |
Integrated Intel HD 4600 Graphics (1) DVI, (1) VGA and (1) DisplayPort (1) LVDS 24 bit dual channel |
|
| Ethernet | Dual Gigabit Ethernet controllers | |
| Expansion | Supports (1) PCIe x16 and (4) PCIe x1 through backplane | |
| SATA | (4) SATA3 support RAID 0/1/5/10 | |
| Audio | Built-in HD Audio Codec with Realtek ALC888 | |
| Serial Port | (5) RS-232 & (1) RS-232/422/485 serial ports | |
| USB | (4) USB 3.0 and (2) USB 2.0 ports | |
Ordering Information
| SBH-6201A2GNDLR-2002E | Half size SBC with Onboard Celeron 2002E Mobile Processor | |
|---|---|---|
| SBH-6201A2GNDLR-4700EQ | Half size SBC with Onboard i7-4700EQ Mobile Processor | |
Recommended Configuration
| Backplane | Chassis | |
|---|---|---|
| Wallmount System | WMC-503BH |
