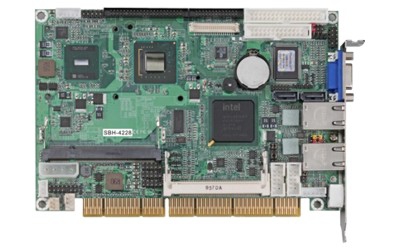

Product Name : SBH-4228
Product Description
- PISA BUS Half-size SBC
- Supports Onboard Intel Atom Processor
- Intel 945GSE Chipset
- Supports Mobile DDR2 SDRAM up to 2GB
- Built-in Intel GMA950 3D Graphics
- Optional Dual Gigabit Ethernet Controllers
- Watchdog Timer and Hardware Monitoring
Additional Files
Product Information
| CPU | Onboard Intel Atom N270 1.6GHz CPU | |
|---|---|---|
| Chipset | Intel 945GSE & ICH7M | |
| System Memory | (1) 200-pin SO-DIMM supports DDR2 533 up to 2 GB | |
| Display |
Integrated Intel GMA950 Graphics Onboard DVI connector, 18-bit LVDS and HDTV interface |
|
| Ethernet | Optional Dual Gigabit Ethernet controllers | |
| IDE | Supports (1) IDE channel & up to (2) IDE drives | |
| SATA | (2) SATA ports with 150 MBps transfer speed | |
| Audio | Onboard AC97 Codec Audio | |
| Serial Port | (1) RS-232 & (1) RS-232/422/485 serial ports | |
| USB | (6) USB 2.0 ports | |
Ordering Information
| SBH-4228AGNLD | Half size SBC with Intel Atom N270, DVI & LVDS, HDTV, Gigabit LAN, Audio | |
|---|---|---|
| SBH-4228A2GNLD | Half size SBC with Intel Atom N270, DVI & LVDS, HDTV, Dual Gigabit LAN, Audio | |
| DC-WFL1 | Mini PCI 802.11b/g Wireless card with 10 cm antenna | |
| DC-WFL2 | Mini PCI 802.11b/g Wireless card with 20 cm antenna | |
Recommended Configuration
| Backplane | Chassis | |
|---|---|---|
| Wallmount System | BPH-0804P | WMC-804C |
