AICSYS => Products => Singleboard computer => Half-size CPU cards => PCI Bus => SBH-4220

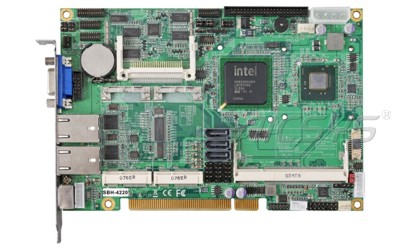

Product Name : SBH-4220
Product Description
- PCI BUS Half-size SBC
- Supports Onboard Intel AtomProcessor
- Intel ICH8M chipset
- Supports DDR2 SO-DIMM up to 4GB
- Built-in Intel GMA 3150 3D Graphics
- Dual Gigabit Ethernet Controllers
- Watchdog Timer and Hardware Monitoring
Additional Files
Product Information
| CPU |
Optional Intel Atom CPU Intel N450 @1.66GHz (fanless) Intel N525 @ 1.8GHz (Dual Core) |
|
|---|---|---|
| Chipset | Intel ICH8M | |
| System Memory |
(1) 200-pin SO-DIMM supports DDR2 667 up to 4 GB (N450 only supports 2 GB) |
|
| Display |
Integrated Intel GMA 3150 Graphics Onboard VGA and 18-bit LVDS interfaces |
|
| Ethernet | Dual Gigabit Ethernet controllers with Intel 82583V | |
| IDE | Supports (1) 44-pin IDE channel & (1) CompactFlash Type II | |
| SATA | (3) SATA ports with 300MBps transfer speed | |
| Audio | Onboard AC97 Codec Audio | |
| Serial Port | (5) RS-232 & (1) RS-232/422/485 serial ports | |
| USB | (6) 2.0 ports | |
Ordering Information
| SBH-4220A2GNL-N450 | Half size SBC with Intel Atom N450, VGA & LVDS, Gigabit LAN, Audio | |
|---|---|---|
| SBH-4220A2GNL-D525 | Half size SBC with Intel Atom N525, VGA & LVDS, Gigabit LAN, Audio | |
Recommended Configuration
| Backplane | Chassis | |
|---|---|---|
| Wallmount System | BPH-0504P | WMC-804C |
