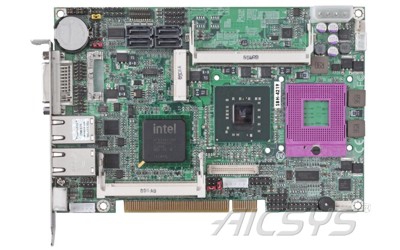

Product Name : SBH-4219
Product Description
- PCI BUS Half-size SBC
- Supports mobile Intel Core 2 Duo Processors
- Intel GM45 & ICH9M chipset
- Supports (2) DDR3 SO-DIMM up to 8 GB
- Built-in Intel 2D/3D VGA Controller
- Dual Gigabit Ethernet Controllers
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Mobile Intel Core 2 Duo Processors | |
|---|---|---|
| Chipset | Intel GM45 with 667/800/1066 Front Side Bus | |
| System Memory | (2) SO-DIMM supports DDR3 800/1066 up to 8 GB | |
| Display |
Intel GM45 GMCH built-in 2D/3D VGA controller Onboard DVI-I/LVDS/HDTV Interface |
|
| Ethernet | Dual Intel 82547L Gigabit Ethernet controllers | |
| Onboard Expansion | (1) Mini PCI & (1) PCI Express Mini Card | |
| SATA | (4) Serial ATA with 300MBps transfer rate | |
| Audio | Onboard HD Codec Audio | |
| Serial Port | (1) RS-232 & (1) RS-232/422/485 serial ports | |
| USB | (8) 2.0 ports | |
Ordering Information
| SBH-4219A2GNLD | PCI Bus Half size SBC card, Socket P for Intel Core 2 Duo CPU, Intel GM45 & ICM9M, 8GB DDR3 SDRAM, Dual Gigabit Ethernet, Audio, DVI and LVDS interface | |
|---|---|---|
