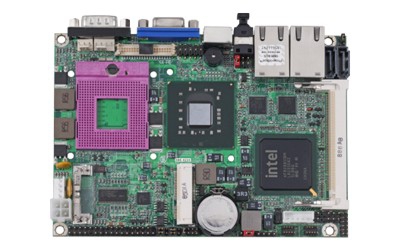

Product Name : SBE-6224
Product Description
- 3.5" Embedded Board
- Supports Intel Core 2 Duo CPU
- Intel GM45 & ICH9M Chipset
- Built-in Intel GMA 4500MHD 3D graphics
- Onboard 24-bit Dual channel LVDS interface
- DC 12V Input Only
- Watchdog Timer and Hardware Monitoring
Additional Files
Product Information
| CPU | Intel Socket P supports Core 2 Duo @ 667/800/1066 MHz FSB | |
|---|---|---|
| Chipset | Intel GM45 & ICH9M Chipset | |
| System Memory | (1) SO-DIMM supports DDR3 800/1066 up to 2 GB | |
| Display |
Intel GMA 4500MHD 3D Graphics HDTV, 24-bit dual channel LVDS LCD interface |
|
| Ethernet | Dual IntelR 82574L Gigabit Ethernet | |
| IDE | None | |
| SATA | (2) Serial ATA Interface with 300 MB/s transfer rate | |
| Audio | Onboard Intel High Definition Audio Codec | |
| Serial Port | (1) RS232 & (1) RS-232/422/485 serial ports | |
| USB | (4) USB 2.0 Ports | |
| Onboard Expansion | (1) Mini PCI, (1) Mini PCI Express | |
Ordering Information
| SBE-6224A2GNL | 3.5" Embedded SBC supports Intel Core 2 Duo CPU, VGA, audio, dual Gigabit LAN, USB, LVDS, HDTV, Mini PCI, Express Card 34, GPIO | |
|---|---|---|
