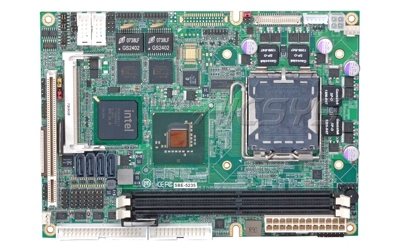

Product Name : SBE-5235
Product Description
- 5.25" Embedded Board
- Supports Intel Core 2 Quad / Duo processors
- Integrated High Performance 3D Graphics
- Dual DVI display
- Dual Gigabit LAN
- ONboard SATA RAID 0, 1, 5 & 10
Additional Files
Product Information
| CPU |
Intel Core 2 Duo / Quad processors 800/1066/1333 MHz Front Side Bus |
|
|---|---|---|
| Chipset | Intel Q35 Express Chipset & ICH9DO | |
| System Memory | 2 x 240-pin DDR2 up to 4GB (under 32-bit OS will only support up to 3.2 GB) | |
| Display |
Integrated Intel GMA X3100 2D/3D Graphics Supports VGA, dual DVI or LVDS output |
|
| Ethernet | Dual Intel 82573L Gigabit Ethernet controllers with 10/100/1000 MPS | |
| IDE | None | |
| SATA | 4 x SATA2 Ports support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio | |
| Serial Port | 5 x RS-232 & 1 x RS232/422/485 serial ports | |
| USB | 8 x USB 2.0 ports | |
| Onboard Expansion | 1 x PCI slot, 1 x mini PCI socket | |
Ordering Information
| SBE-5235A2GD | Onboard VGA, 2 x Intel Gigabit LAN, 8 x USB 2.0, PCI & Mini PCI, FDD, HD AUdio, 4 x SATA, 6 x COM, 1 x DVI | |
|---|---|---|
| SBE-5235A2G2D | Onboard VGA, 2 x Intel Gigabit LAN, 8 x USB 2.0, PCI & Mini PCI, FDD, HD AUdio, 4 x SATA, 6 x COM, 2 x DVI | |
| SBE-5235A2GL | Onboard VGA, 2 x Intel Gigabit LAN, 8 x USB 2.0, PCI & Mini PCI, FDD, HD AUdio, 4 x SATA, 6 x COM, 1 x LVDS | |
| DC-ICS2 | Mini-PCI card support 1 x 44-pin IDE, 2 x SATA, 1 x CF socket | |
