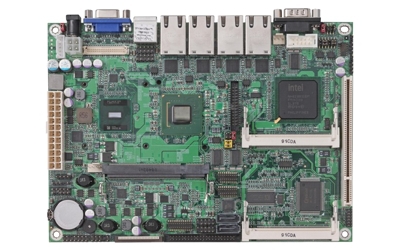

Product Name : SBE-5231
Product Description
- 5.25" Embedded Board
- Embedded Intel Atom N270 CPU
- Supports DDR2 SDRAM up to 2 GB
- Onboard 18-bit LVDS / CRT SVGA
- Onboard 4 Gigabit LAN
- Onboard 6 COM, 8 USB 2.0
- Watchdog Timer and Hardware Monitoring
Additional Files
Product Information
| CPU | Onboard Intel Atom N270 @ 1.6 GHz Processor | |
|---|---|---|
| Chipset | Intel 945GSE & ICH7M | |
| System Memory | Onboard 200-pin SO-DIMM supports DDR2 up to 2GB | |
| Display |
Intel 945GSE integrated GMA950 2D/3D Graphics Onboard 18-bit dual channel / VGA interfaces, HDTV interface Optional secondary 24-bit LVDS or DVI interface |
|
| Ethernet | Four 10/100/1000 Mbps LAN interfaces | |
| IDE |
Supports (1) IDE channel & upto (2) IDE drives Onboard CompactFlash Type-II socket |
|
| SATA | (2) Serial ATA2 Interface with 150 MB/s transfer rate | |
| Audio | Onboared HD Codec Audio | |
| Serial Port | (5) RS-232 & (1) RS232/422/485 serial ports | |
| USB | (8) USB 2.0 ports | |
| Onboard Expansion | (2) Mini PCI slot, (1) PCI | |
Ordering Information
| SBE-5231A4GL | Intel Atom 5.25" SBC with VGA, HDTV, (4) LAN, SATA USB, Audio, (6) COM, Mini-PCI, PCI, CF, 18-bit LVDS 1 x DVI | |
|---|---|---|
