AICSYS => Products => Singleboard computer => Embedded Boards => 3.5" Boards => SBE-3601

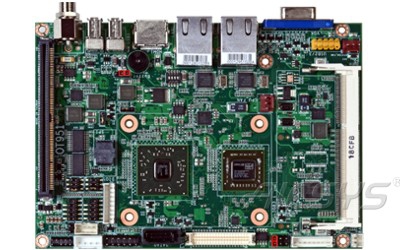

Product Name : SBE-3503
Product Description
- 3.5" Embedded Board
- Onboard AMD T40N APU
- AMD A50M Controller Hub
- Integrated AMD Radeon HD 6290 Graphics
- Onboard 24-bit Dual channel LVDS interface
- DC 12V Input Only
- Watchdog Timer and Hardware Monitoring
Additional Files
Product Information
| CPU | AMD T40N, 1.0 GHz, 2 x 512 KB L2, 9 W TDP, dual-core (fanless) | |
|---|---|---|
| Chipset | AMD A50M Controller Hub | |
| System Memory | One 204-pin DDR3 SO-DIMM supports DDR3 1066 up to 8 GB | |
| Display |
Integrated AMD Radeon HD 6290 Graphics VGA, HDMI and 24-bit dual channel LVDS LCD interface |
|
| Ethernet | Dual Realtek RTL8111DL Gigabit Ethernet Controllers | |
| IDE | (1) Compact Flash Socket | |
| SATA | (1) Serial ATA Interface with 300 MB/s transfer rate | |
| Audio | Realtek ALC886 5.1 channel High Definition Audio | |
| Serial Port | (2) external RS-232/422/485 serial ports | |
| USB | (4) USB 2.0 Ports | |
| Onboard Expansion | (1) Mini PCI Express | |
Ordering Information
| SBE-3601A2GNL | 3.5" Embedded SBC with Onboard AMD T40N GPU, VGA, audio, dual Gigabit LAN, USB, LVDS, HDMI, Mini PCI, Express card, GPIO | |
|---|---|---|
