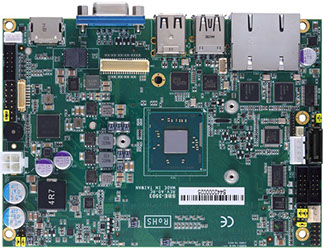

Product Name : SBE-3503
Product Description
- Embedded 3.5" Board
- Onboard Intel Atom processor E3845
- Dual Gigabit Ethernet supported
- (1) SATA-300
- Watchdog Timer and Hardware Monitoring
- HDMI / VGA / LVDS multiple display outputs
Additional Files
Product Information
| CPU | Onboard Intel Atom processor E3845 @ 1.91 GHz (fanlesss) | |
|---|---|---|
| Chipset | SoC Integrated | |
| System Memory | (2)204-pin SO-DIMM supports DDR3L 1066/1333 up to 8 GB | |
| Display |
Integrate Intel HD Graphics (1)HDMI, (1) VGA (1) LVDS 24 bit dual channel |
|
| Ethernet |
(2) 10/100/1000 Mbps with Intel i211AT Supports Wake-on-Lan, PXE Boot ROM |
|
| SATA | (1) Serial ATA Interface with 300 MB/s transfer rate | |
| Audio | (1) Built-in HD Audio Codec with Realtek ALC662 | |
| Serial Port | (1) RS-232/422/485 with +5V / +12V powered (1) RS232 |
|
| USB | (4) USB 2.0 and (1) USB 3.0 ports | |
Ordering Information
| SBE-3503A2GNL | 3.5" Embedded SBC with Intel Atom processor E3845 1.91 GHz and VGA / LVDS / HDMI, (2) Gigabit LAN and Audio | |
|---|---|---|
