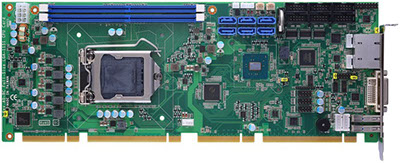

Product Name : SBC-6510
Product Description
- Full-size PICMG 1.3 Single Board Computer
- Supports 6th Gen. LGA1151 Core i7/i5/i3 Processors
- Intel Q170 PCH
- Supports DDR4 2133 up to 16GB
- PCIe GEn. 3 at 8GT/s supported
- DVI and VGA for dual displays
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA1151 for 6th Generation Intel Core i7/i5/i3 processors | |
|---|---|---|
| Chipset | Intel Q170 PCH | |
| System Memory | (2)240-pin DDR4 2133 DIMM max. up to 16GB | |
| Display | Intel HD Graphic | |
| Ethernet |
1st port as 10/100/1000Mbps supports WOL,RPL/PXE Boot ROM with Intel i219LM
(AMT 11 supported) 2nd port as 10/100/1000Mbps supports WOL, RPL/PXE Boot ROM with Intel i211AT |
|
| IDE | None | |
| SATA | (6) SATA-600 with RAID 0/1/5/10 | |
| Audio | Built-in HD Audio Codec | |
| Serial Port | (5)RS232 & (1)RS232/422/485 ports | |
| USB | (2) USB 3.0 & (10) USB 2.0 ports | |
Ordering Information
| SBC-6510A2GND | PICMG 1.3 supports Intel Core i processors with VGA, SATA, USB 3.0, Audio, RS232/422/485, DVI and dual Gigabit LAN | |
|---|---|---|
