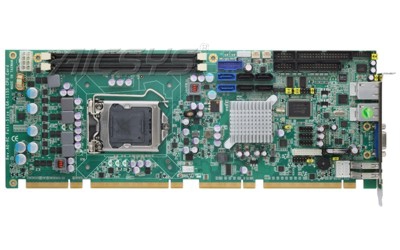

Product Name : SBC-6508
Product Description
- Supports Intel Core i7/i5/i3 Processors
- Dual Gigabit Ethernet supported
- (6) SATA ports supports RAID 0, 1, 5, 10
- Watchdog & Hardware Monitor function
Additional Files
Product Information
| CPU |
LGA 1155 socket for: Intel Core i7-3770 (3.4GHz, 77W) Intel Core i5-3550S (3GHz, 65W) Intel Core i3-3220 (3.3GHz, 55W) |
|
|---|---|---|
| Chipset | Intel Q77 PCH | |
| System Memory | (2) DIMM supports DDR3 1333/1600 up to 16GB | |
| Display | Intel HD Graphic Max up to 352MB frame buffer dedicated memory |
|
| Ethernet |
1st port as 10/100/1000Mbps supports WOL,RPL/PXE Boot ROM with Intel 82574L 2nd port as 10/100/1000Mbps supports WOL, RPL/PXE Boot ROM with Intel 82579LM |
|
| IDE | None | |
| SATA | (2) SATA3 6Gbps & 4 SATA2 3 Gbps ports supports RAID 0, 1, 5, 10 | |
| Audio | (1) HD Codec with Realtek ALC662 | |
| Serial Port | (1)RS232 & (1)RS232/422/485 serial port | |
| USB | (6) USB 2.0 & (4) USB 3.0 ports | |
Ordering Information
| SBC-6508A2GND | PICMG 1.3 supports Intel Core i processors with VGA, SATA, USB 3.0, Audio, RS232/422/485, DVI and dual Gigabit LAN | |
|---|---|---|
