AICSYS => Products => Singleboard computers => PICMG 1.3 Bus => SBC-6507

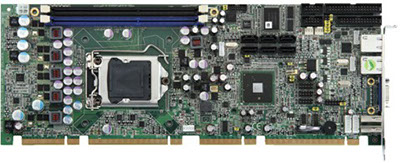

Product Name : SBC-6507
Product Description
- Supports Intel Xeon / Core i3 / Pentium Processors
- Dual Gigabit Ethernet supported
- Intel AMT & TPM supported
- (6) SATA ports supports RAID 0, 1, 5, 10
- Watchdog & Hardware Monitor function
Additional Files
Product Information
| CPU |
LGA1155 socket for Intel Xeon / Core i3 / Pentium processors Intel Xeon E3-1275 (8M Cache, 3.40 GHz) Intel Xeon E3-1225 (6M Cache, 3.10 GHz) Intel Core i3-2120 (3M Cache, 3.30 GHz) |
|
|---|---|---|
| Chipset | Intel C206 PCH | |
| System Memory | (2) DIMM supports DDR3 1066/1333 up to 8GB, unbuffered ECC supported (Xeon Only) | |
| Display | Intel HD Graphic | |
| Ethernet |
1st port as 10/100/1000Mbps supports WOL,RPL/PXE Boot ROM with Intel 82574L 2nd port as 10/100/1000Mbps support WOL, RPL/PXE Boot ROM with Intel 82579LM |
|
| IDE | None | |
| SATA | (2) SATA3 & (4) SATA2 ports supports RAID 0, 1, 5, 10 | |
| Audio | (1) HD Codec with Realtek ALC662 | |
| Serial Port | (1) RS232 & (1) RS232/422/485 serial port | |
| USB | (14) USB 2.0 | |
Ordering Information
| SBC-6507A2GN | PICMG 1.3 Full-size SBC with LGA1155, SATA RAID, Dual Gigabit LAN, USB 2.0 | |
|---|---|---|
