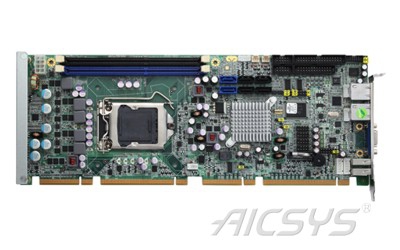

Product Name : SBC-6505
Product Description
- Full-size PICMG 1.3 Single Board Computer
- Supports LGA155 Core i7/i5/i3 Processors
- Intel Q67 PCH
- Supports DDR3 1066/1333 up to 16GB
- Six Serial ATA ports supports RAID 0, 1, 5, 10
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA 1155 Intel Core i3/i5/i7 | |
|---|---|---|
| Chipset | Intel Q67 PCH | |
| System Memory | (2) DIMM supports DDR3 1066/1333 up to 16GB | |
| Display | Intel HD Graphic Max up to 352MB frame buffer dedicated memory |
|
| Ethernet | Dual Gigabit Ethernet Controller | |
| IDE | None | |
| SATA | (2) SATA3 & (4) SATA2 interfaces supports RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (1)RS232 & (1)jumper selectable RS232/422/485 serial ports | |
| USB | (14) USB 2.0 Ports | |
Ordering Information
| SBC-6505A2GN | PICMG 1.3 supports Intel Core i processors with VGA, SATA, USB 2.0, Audio, RS232/422/485, DVI and dual Gigabit LAN | |
|---|---|---|
