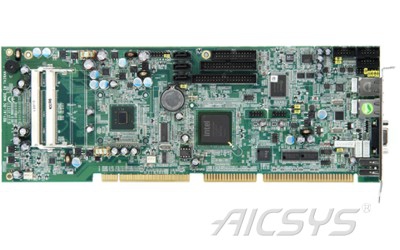

Product Name : SBC-6501
Product Description
- Full-size PICMG 1.0 Single Board Computer
- Supports Intel Atom Processor D510 Dual Core
- Intel ICH8M + ITE8888G chipset
- (2) DDR2 SO-DIMM supports up to 4GB
- (6) USB 2.0 ports
- (3) Serial ATA ports
- ISA with up to 500mA high drive supported
Additional Files
Product Information
| CPU | LGA775 Intel Atom processor D510 1.66 dual core | |
|---|---|---|
| Chipset | Intel ICH8M + ITE8888G | |
| System Memory | (2) 200-pin SO-DIMM supports DDR2 667/800 up to 4GB | |
| Display | Intel GMA3150 graphics Core | |
| Ethernet | Dual Gigabit Ethernet Controller | |
| IDE | (1) IDE; PATA-100 | |
| SATA | (3) SATA interfaces with 300MBps transfer rate | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (1) RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (6) USB 2.0 ports | |
Ordering Information
| SBC-6501A2GN | Intel Atom D510 PICMG 1.0 Full-size CPU card with VGA, (2) 10/100/1000Mbps Ethernet and Audio | |
|---|---|---|
Recommended Configuration
| Backplane | Chassis | |
|---|---|---|
| 1U Rackmount System | BP-403PA0-1U | RCK-103BR |
| 2U Rackmount System | BP-602P-2U BR-604P-2U |
RCK-203B |
| BP-0604PA | RCK-203BA | |
| 4U Rackmount System | BP-1404P BP-1407A BP-1412A |
RCK-402B RCK-403B RCK-405B RCK-406B RCK-407BA |
| 6U Rackmount System | BP-2012PS | RCK-606B/608B |
| Wallmount System | BP-0604P | WMC-603B |
| BP-0804P BP-0807A |
WMC-804B |
