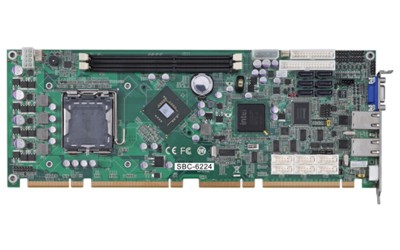

Product Name : SBC-6224
Product Description
- Full-size PICMG 1.3 Single Board Computer
- Supports Intel Core 2 Duo / Quad CPU
- Intel Q45 & ICH10DO Chipset with 800/1066/1333MHz FSB
- Supports DDR3 800/1066 up to 4GB
- (8) USB 2.0 Ports
- (6) Serial ATA ports with RAID 0, 1, 5, 10
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA775 supports Intel Core 2 Quad / Core 2 Duo / Celeron | |
|---|---|---|
| Chipset | Intel Q45 & ICH10DO | |
| System Memory | 2 x DIMM supports DDR3 800/1066 up to 4GB | |
| Display |
Intel Graphics Media Accelerator 4500 engine Up to 1024MB frame buffer size shared with system memory |
|
| Ethernet | Dual Gigabit Ethernet Controllers | |
| IDE | None | |
| SATA | (6) SATA interfaces supports RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (5)RS-232 & (1)jumper selectable RS-232/422/485 ports | |
| USB | (8) USB 2.0 Ports | |
Ordering Information
| SBC-6224AGN | Full size SBC with LGA775 for Intel Core 2 Duo/Quad. Gigabit LAN, 6 x SATA RAID | |
|---|---|---|
| SBC-6224A2GN | Full size SBC with LGA775 for Intel Core 2 Duo/Quad. Dual Gigabit LAN, 6 x SATA RAID | |
