AICSYS => Products => Singleboard computer => Full-size CPU cards => PICMG 1.3 Bus => SBC-6223

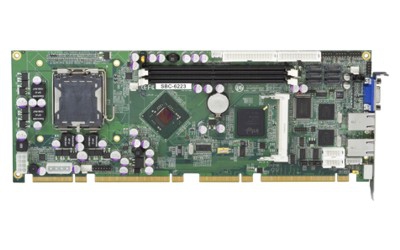

Product Name : SBC-6223
Product Description
- Full-size PICMG 1.3 Single Board Computer
- Supports LGA775 Core 2 Quad/Duo Processor
- Intel Q965 Chipset with 533/800/1066 MHz FSB
- Supports DDR2 533/667/800 up to 4GB
- Six USB 2.0 Ports
- Six Serial ATA ports support RAID 0, 1, 5, 10
- Supports Watchdog Toimer
Additional Files
Product Information
| CPU | LGA775 Intel Core 2 Quad / Core 2 Duo / Pentium Dual Core | |
|---|---|---|
| Chipset | Intel Q965 Chipset | |
| System Memory | Two DIMM for up to 4GB DDR2 SDRAM | |
| Display | Intel Graphics Medis Accelerator 3000 IGP with DVI and VGA Interface | |
| Ethernet | Dual Gigabit Ethernet Controller | |
| IDE | None | |
| SATA | (6) SATA interfaces support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (1)RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (6) USB 2.0 ports | |
Ordering Information
| SBC-6223AGN | PICMG 1.3 LGA775 with Intel Q965, DDR2 SDRAM, Gigabit LAN, VGA, SATA RAID | |
|---|---|---|
| SBC-6223A2GN | PICMG 1.3 LGA775 with Intel Q965, DDR2 SDRAM, Dual Gigabit LAN, VGA, SATA RAID | |
| DC-ICS2 | Mini-PCI Card support 1 x 44-pin IDE, 1 x CF, 2 x SATA | |
Recommended Configuration
| Backplane | Chassis | |
|---|---|---|
| 2U Rackmount System | BPE-501P-2U | RCK-203BA |
| BPE-0502P-2U | RCK-203BE | |
| 4U Rackmount System | BPE-1308A BPE-1404PE BPE-1413A |
RCK-402B RCK-403B RCK-405B RCK-406B RCK-407BA |
| 6U Rackmount System | BPE-1308A BPE-1404PE BPE-1413A |
RCK-606B/608B |
| Wallmount System | BPE-0603P BPE-0605E |
WMC-603B |
