AICSYS => Products => Singleboard computer => Full-size CPU cards => PICMG 1.0 Bus => SBC-6221

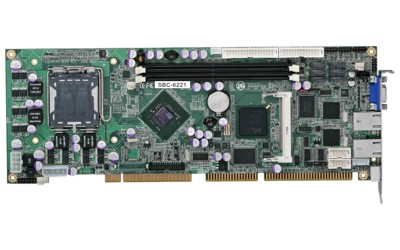

Product Name : SBC-6221
Product Description
- Full-size PICMG 1.0 Single Board Computer
- Supports LGA775 Core 2 Quad/Duo Processor
- Intel Q965 Chipset with 553/800/1066 MHz FSB
- Supports DDR2 553/667/800 up to 4GB
- Six USB 2.0 Ports
- Six Serial ATA ports support RAID 0, 1, 5, 10
- Supports Watchdog Toimer
Additional Files
Product Information
| CPU | LGA775 Intel Core 2 Quad / Core 2 Duo / Pentium Dual Core | |
|---|---|---|
| Chipset | Intel Q965 Chipset | |
| System Memory | Two DIMM Sockets for up to 4GB DDR2 SDRAM | |
| Display | Intel Graphics Media Accelerator 3000 IGP with DVI and VGA Interface | |
| Ethernet | Dual Gigabit Ethernet Controller | |
| IDE | None | |
| SATA | (6) SATA interfaces support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (1) RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (6) USB 2.0 ports | |
Ordering Information
| SBC-6221AGN | PICMG 1.0 LGA775 with Intel Q965, DDR2 SDRAM, Gigabit LAN, VGA, SATA RAID | |
|---|---|---|
| SBC-6221A2GN | PICMG 1.0 LGA775 with Intel Q965, DDR2 SDRAM, Dual Gigabit LAN, VGA, SATA RAID | |
Recommended Configuration
| Backplane | Chassis | |
|---|---|---|
| 1U Rackmount System | BP-403PA0-1U | RCK-103BR |
| 2U Rackmount System | BP-602P-2U BR-604P-2U |
RCK-203B |
| BP-0604PA | RCK-203BA | |
| 4U Rackmount System | BP-1404P BP-1407A BP-1412A |
RCK-402B RCK-403B RCK-405B RCK-406B RCK-407BA |
| 6U Rackmount System | BP-2012PS | RCK-606B/608B |
| Wallmount System | BP-0604P | WMC-603B |
| BP-0804P BP-0807A |
WMC-804B |
