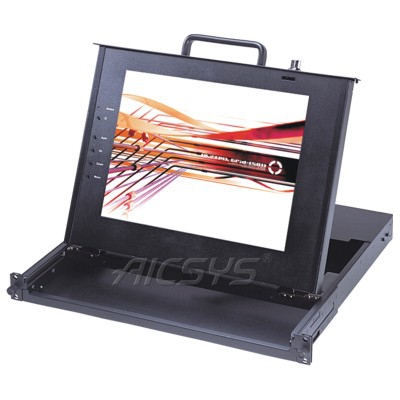

Product Name : MEDUSA-B
Product Description
- Standard 19" Rackmount LCD Monitor
- 15" / 17" / 19"TFT LCD Display
- High Contrast ratio and Wide-viewing angle
- 4-CCFL backlit lamps for high display quality
- On Screen Display (OSD) enable easy adjustment
- Low power consumption
- Optional Touch-screen function
- Support Sun native resolution
Additional Files
Product Information
| MEDUSA-B115 | MEDUSA-B117 | MEDUSA-B119 | |
|---|---|---|---|
| Display Size | 15" | 17" | 19" |
| Resolution | XGA 1024x768 | SXGA 1280x1024 | SXGA 1280x1024 |
| Pixel Pitch | 0.297mm x 0.297mm | 0.264mm x 0.264mm | 0.098mm x 0.294mm |
| Viewing Angle | R-L view 130º U-D view100º |
R-L view 60º - 70º U-D view 45º - 60º |
R-L view 140º U-D view 140º |
| Contrast Ratio | 400:1 | 450:1 | 500:1 |
| Brightness | white 300cd/m2 | ||
| Interface | DB15 VGA Port | ||
| Dimensions |
443.4 (W) x 447 (D) x 44 (H) mm 17.5 (W) x 17.6 (D) x 1.7 (H) inches |
443.4 (W) x 508.8 (D) x 44 (H) mm 17.5 (W) x 20 (D) x 1.7 (H) inches |
|
| Weight | 15.2 kgs | 16.4 kgs | 18 kgs |
Ordering Information
| MEDUSA-B115 | 15" Rackmount TFT LCD Monitor Drawer - Black | ||
|---|---|---|---|
| MEDUSA-B115T | 15" Rackmount TFT LCD Monitor with Resistive Touch Screen - Black | ||
| MEDUSA-B117 | 17" Rackmount TFT LCD Monitor Drawer - Black | ||
| MEDUSA-B117T | 17" Rackmount TFT LCD Monitor with Resistive Touch Screen - Black | ||
| MEDUSA-B119 | 19" Rackmount TFT LCD Monitor Drawer - Black | ||
| MEDUSA-B119T | 19" Rackmount TFT LCD Monitor with Resistive Touch Screen - Black | ||
