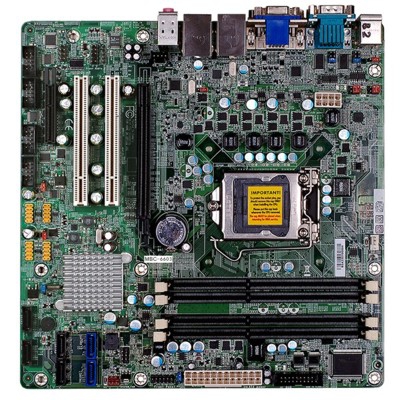

Product Name : MBC-6603
Product Description
- LGA 1155 supports 2 Gen. Core i Processors
- Supports DDR3 1333 SDRAM up to 32 GB
- Dual Gigabit LAN
- SATA RAID 0, 1, 5 and 10
- Onboard VGA & DVI dual display interface
- Supports Watchdog Timer
Additional Files
Product Information
| CPU |
LGA 1155 socket for: Intel Core i7-2600 (3.4 GHz, 95W) Intel Core i5-2400 (3.1 GHz, 95W) Intel Core i3-2120 (3.3 GHz, 65W) Intel Pentium G850 |
|
|---|---|---|
| Chipset | Intel Q67 PCH (Platform Controller Hub) | |
| System Memory | (4) 240-pin DDR3 DIMM sockets Supports DDR3 1066/1333 MHz up to 32 GB |
|
| Display |
Intel HD Graphics Display Ports: DVI-I (ASMedia 1442) and VGA |
|
| Ethernet | Dual Gigabit LAN with Intel 82579M and Realtek RTL8111DL | |
| IDE | None | |
| SATA |
(2) SATA3 Ports with 600MBps (4) SATA2 with RAID 0, 1, 5, 10 |
|
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (2) RS-232/422/485 & (4) RS232 serial ports | |
| USB | (12) USB 2.0 Ports | |
| Onboard Expansion | (1) PCIe x16 (2.0), (1) PCIe x4 (2.0), (2) PCI slots | |
