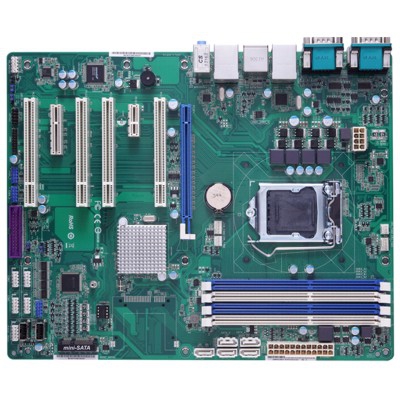

Product Name : MBC-6510
Product Description
- Supports LGA 1150 Intel Core i Processors
- (4) DDR3 1333/1600 DIMM support up to 32 GB
- Intel HD 2500/4600 Graphics
- (5) SATA3 with RAID 0, 1, 5 and 10
- Triple view display with VGA / HDMI / Display Port
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA1150 Intel Corei3 / i5 / i7 processors | |
|---|---|---|
| Chipset | Intel Q87 PCH | |
| System Memory | (4) 240-pin DDR3 1333/1600 DIMM max. up to 32 GB | |
| Display |
Intel HD 2500/4600 Graphics (1) VGA, (1) Display Port & (1) HDMI |
|
| Ethernet |
1st port with Intel i210AT as 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT 2nd port with Intel i217LM as 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM |
|
| IDE | None | |
| SATA | (5) SATA3 Ports with RAID 0, 1, 5, 10 (1) mSATA socket | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (4) RS232 and (2) jumper selectable RS-232/422/485 serial ports | |
| USB |
(4) USB 3.0 Ports, (10) USB 2.0 ports (2 in Rear IO, 6 with pin header and 2 vertical type conn) |
|
| Onboard Expansion | (1) PCIe x16 Gen. 3, (1) PCIe x4 Gen. 2, (1) PCIe x 1 Gen. 2, (4) PCI | |
Ordering Information
| MBC-6510A2GPR | LGA1150 Socket 4th Generation Intel Core i7/i5/i3 processors ATX Industrial Motherboard with Intel Q87 PCH, USB 3.0, SATA 3.0, Dual LAN, DP/VGA/HDMI and mSATA | |
|---|---|---|
