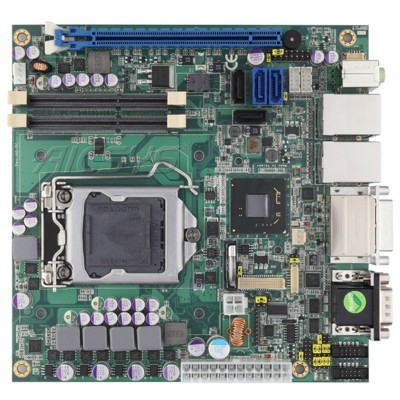

Product Name : MBC-6508
Product Description
- Mini-ITX Motherboard
- Supports 3rd Generation Intel Core i7 / i5 / i3 Celeron processors (ivy Bridge)
- Intel Q77 Chipset
- Supports DDR3 1333 / 1600 up to 16 GB
- iAMT 8.0 supported
- Two SATA3 with RAID 0, 1, 5, and 10 supported
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA1155 socket 3rd Generation Intel Core i7 / i5 / i3 / Celeron processors (ivy bridge) | |
|---|---|---|
| Chipset | Intel Q77 | |
| System Memory | (2) 204-pin DDR3 1333/1600 SO-DIMM up to 16 GB | |
| Display |
Intel HD 4000/2500 Graphics (1) HDMI, (1) DVI-I and LVDS outputs Supports Dual view display |
|
| Ethernet | 1st port as 10/100/1000 Mbps supports WOL, PXE with Intel 82579LM/V 2nd port as 10/100/1000 Mbps supports WOL, PXE with Intel 82583V | |
| IDE | None | |
| SATA |
(2) SATA2; (1) SATA2 supports SATADOM (2) SATA3 support RAID 0, 1, 5 and 10 |
|
| Audio | HD Audio as Mic-in/Line-out with Realtek ALC662 | |
| Serial Port | (3) RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (4) USB 3.0 and (4) USB 2.0 Ports | |
| Onboard Expansion | (1) PCIe x16 Gen3 (1) PCI Express Mini card |
|
Ordering Information
| MBC-6508A2GLDR | LGA1155 socket mini ITX SBC with Intel Core i7 / i5 /i3 / Celeron, HDMI / DVI-I / LVDS, (2) Gigabit Ethernet and USB 3.0 | |
|---|---|---|
Recommended Configuration
| Chassis | ||
|---|---|---|
| Wallmount System | WMC-103M | |
| Rackmount System | NDS-203M | |
