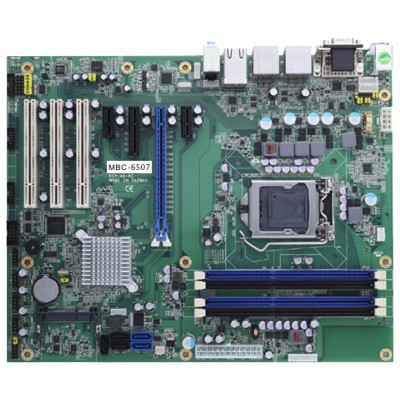

Product Name : MBC-6507
Product Description
- Supports LGA 1155 Intel Core i Processors
- (4) DDR3 1066/1333 DIMM support up to 32 GB
- Intel HD 2000/3000 Graphics
- SATA RAID 0, 1, 5 and 10
- Infineon SLB9635 for trusted platform
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA1155 Intel Corei3 / i5 / i7 processors | |
|---|---|---|
| Chipset | Intel Q67 PCH | |
| System Memory | (4) 240-pin DDR3 800/1066 DIMM max. up to 32 GB | |
| Display |
Intel HD 2000/3000 Graphics (2) Display Port & (1) DVI-I |
|
| Ethernet |
1st port as 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT with Intel 82579LM 2nd port as 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel 82583V |
|
| IDE | None | |
| SATA | (2) SATA3 & (3) SATA2 with RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (3) RS232 and (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (12) USB 2.0 ports | |
| Onboard Expansion | (1) PCIe x16 Gen. 2 (slot 2), (1) PCIe x4 Gen. 2, (2) PCIe x 1 Gen. 2, (3) PCI | |
Ordering Information
| MBC-6507A2GDR | LGA1155 Socket ATX Industrial Motherboard with (2) display Port & (1) DVI-I, (2) Gigabit LAN, audio, iAMT, iTPM and SATA RAID | |
|---|---|---|
