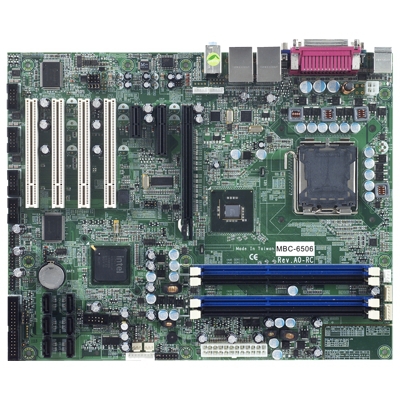

Product Name : MBC-6506
Product Description
- Supports Intel Core 2 Quad Processors
- 4 DDR3 800/1066 DIMM support up to 16 GB
- Intel Gen. 5 high performance integrated Graphics
- RAID 0, 1, 5 and 10
- Intel® iAMT & iTPM
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA775 socket for Intel Core 2 Quad / Core 2 Duo / Celeron processor with 800/1066/1333 MHz MT/s | |
|---|---|---|
| Chipset | Intel Q45 + ICH10-DO | |
| System Memory | (4) 240-pin DDR3 800/1066 DIMM max. up to 16 GB | |
| Display | Intel Q45 GMCH 4500 integrated graphic engine; support Microsoft DirectX 10 & OpenGL 2.1 | |
| Ethernet |
1st port as 10/100/1000 Mbps supports Wake-on-LAN with Intel 82574L 2nd port as 10/100/1000 Mbps supports iAMT, Wake-on-LAN with Intel 82567LM |
|
| IDE | None | |
| SATA | (6) SATA2 with RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (3) RS232 and (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (12) USB 2.0 ports | |
| Onboard Expansion | (1) PCIe x16, (1) PCIe x4, (1) PCIe x 1 (reserved for not used), (4) PCI | |
Ordering Information
| MBC-6506A2GDR | LGA775 Socket ATX Industrial Motherboard with VGA, (2) Gigabit LAN, audio, iAMT, iTPM and SATA RAID | |
|---|---|---|
