AICSYS => Products => Singleboard computer => Industrial Motherboards=> Micro-ATX => MBC-6250

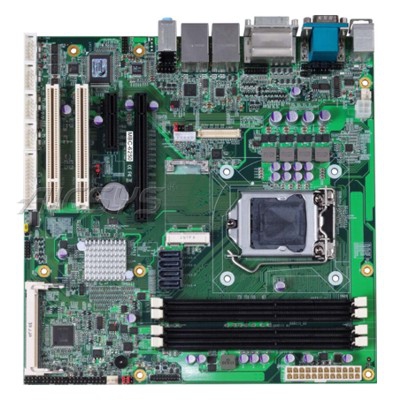

Product Name : MBC-6250
Product Description
- Industrial Micro-ATX Motherboard
- Supports LGA1150 Core i7/i5/i3 processor
- Intel Q87 Chipset
- Supports DDR3 1333/1600 up to 32 GB
- Intel Core integrated HD Graphics Technology
- Serial ATA ports support RAID 0, 1, 5, 10
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Intel Core i7/i5/i3 processors | |
|---|---|---|
| Chipset | Intel Q87 PCH | |
| System Memory | (4) DDR3/DDR3L (support 1.5V) 1333/16000 DIMM up to 32 GB | |
| Display |
Intel Core integrated HD Graphics Technology DVI / VGA / LVDS / DisplayPort multiple display |
|
| Ethernet | Dual Intel 82574L Gigabit Ethernet controllers with 10/100/1000Mbps | |
| IDE | None | |
| SATA | (4) SATA3 Interfaces support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (5) RS-232 and (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (6) USB 2.0 Ports, (6) USB 3.0 Ports | |
| Onboard Expansion | (1) PCIe x16 & x4 slot, (1) PCIe mini card, (1) mini PCI, (2) PCI slots | |
Ordering Information
| MBC-6250A2GNLDP | Onboard DVI, Display Port, CRT, LVDS, (2) Gigabit LAN, USB 3.0 & 2.0, Serial Ports, SATA3, HD Audio | |
|---|---|---|
