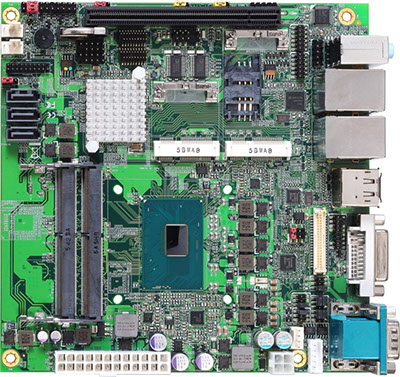

Product Name : MBC-6243
Product Description
- Mini-ITX Motherboard
- Supports Intel 4th Gen. Mobile Core CPU
- Intel QM87 Chipset
- Supports DDR3 1333/1600 up to 16 GB
- Intel Core integrated HD Graphics Technology
- Serial ATA ports support RAID 0, 1, 5, 10
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Onboard Intel Mobile Core i3-4102E / i5-4402E / i7-4700EQ | |
|---|---|---|
| Chipset | Intel QM87 | |
| System Memory | (2) DDR3 1333/1600 SO-DIMM up to 16 GB | |
| Display |
Intel Core Integrated HD Graphics Technology Onboard VGA / DVI / Display Port / 24-bit LVDS interfaces |
|
| Ethernet |
Intel I210 Gigabit Controller Intel I217LM Gigabit Controller (iAMT 9.0) |
|
| IDE | None | |
| SATA | (4) SATA3 interfaces support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (5) RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (4) USB 2.0 and (6) USB 3.0 Ports | |
| Onboard Expansion | (1) PCIe x16, (1) PCIE Mini card | |
Ordering Information
| MBC-6243A2GDLI-4102 | Mini-ITX Motherboard with Onboard Intel Core i3-4102E, Dual Gigabit LAN, SATA3, Audio, DVI, Display Port and LVDS, USB 3.0 | |
|---|---|---|
| MBC-6243A2GDLI-4402 | Mini-ITX Motherboard with Onboard Intel Core i5-4402E, Dual Gigabit LAN, SATA3, Audio, DVI, Display Port and LVDS, USB 3.0 | |
| MBC-6243A2GDLI-4700 | Mini-ITX Motherboard with Onboard Intel Core i7-4700EQ, Dual Gigabit LAN, SATA3, Audio, DVI, Display Port and LVDS, USB 3.0 | |
Recommended Configuration
| Chassis | ||
|---|---|---|
| Wallmount System | WMC-103M | |
