AICSYS => Products => Singleboard computer => Industrial Motherboards=> Mini-ITX => MBC-6240

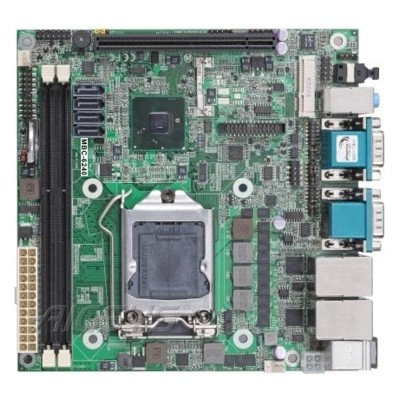

Product Name : MBC-6240
Product Description
- Mini-ITX Motherboard
- Supports LGA1156 Core i7 / i5 / i3 Processor
- Intel BD82Q57 Chipset
- Supports DDR3 1066/1333 up to 8 GB
- Intel Core integrated HD Graphics Technology
- Serial ATA ports support RAID 0, 1, 5, 10
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Intel Core i7 / i5 / i3 processors | |
|---|---|---|
| Chipset | Intel BD82Q57 PCH | |
| System Memory | 2 x DDR3 1066/1333 up to 8 GB | |
| Display |
Intel Core Integrated HD Graphics Technology Onboard DVI interface |
|
| Ethernet | Dual Intel 82574L Gigabit Ethernet controllers with 10/100/1000 MBps | |
| IDE | None | |
| SATA | (4) SATA interfaces support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (3) RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (8) USB 2.0 Ports | |
| Onboard Expansion | 1 x PCIe x16, (1) x mini PCI socket, 1 x PCIe Mini card | |
Ordering Information
| MBC-6240A2GD | LGA1156 Intel Core i7 Mini-ITX Motherboard with Dual Gigabit LAN, SATA RAID, HD Audio, DVI | |
|---|---|---|
Recommended Configuration
| Chassis | ||
|---|---|---|
| Wallmount System | WMC-103M | |
