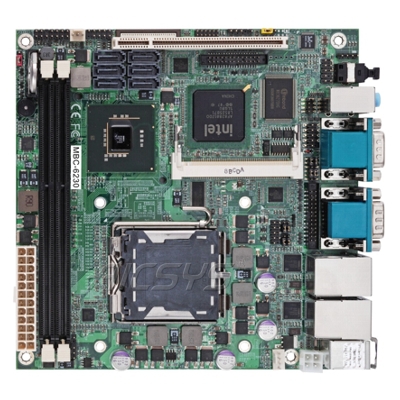

Product Name : MBC-6230
Product Description
- Mini-ITX Motherboard
- Supports LGA775 Core 2 Quad / Duo Processor
- Intel Q45 Chipset
- Supports DDR3 800/1066 up to 4 GB
- Intel Q45 GMCH built in GMA 4500 Graphics
- Six Serial ATA ports support RAID 0, 1, 5, 10
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Intel Core 2 Duo / Quad processors | |
|---|---|---|
| Chipset | Intel Q45 & ICH10DO | |
| System Memory | 2 x DDR3 800/1066 up to 4 GB | |
| Display |
Integrated Intel GMA 4500 2D / 3D Graphics Supports VGA, optional up to (2) DVI output |
|
| Ethernet | Dual Intel 82574L Gigabit Ethernet controllers with 10/100/1000 Mbps | |
| IDE | None | |
| SATA | (6) SATA interfaces support RAID 0, 1, 5, 10 | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (3) RS-232 & (1) jumper selectable RS-232/422/485 serial ports | |
| USB | (8) USB 2.0 Ports | |
| Onboard Expansion | (1) PCI, (1) mini PCI | |
Ordering Information
| MBC-6230A2GD | LGA775 Intel Q45 Mini-ITX Motherboard with Dual Gigabit LAN, DVI | |
|---|---|---|
| MBC-6230A2G2D | LGA775 Intel Q45 Mini-ITX Motherboard with Dual Gigabit LAN, Dual DVI | |
Recommended Configuration
| Chassis | ||
|---|---|---|
| Wallmount System | WMC-103M | |
