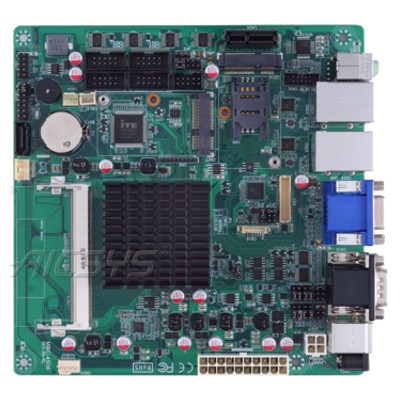

Product Name : MBC-4506
Product Description
- Mini-ITX Motherboard
- Onboard Intel Bay Trail-D 2.0 GHz CPU
- Dual Gigabit Ethernet supported
- (6) COM and (6) USB ports
- PCI Express mini card socket
- LVDS interface
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Intel Celeron processor J1900 (up to 2.42 GHz) quad core SoC (Bay Trail) | |
|---|---|---|
| Chipset | SoC Integrated | |
| System Memory | (1) 204-pin SO-DIMM supports DDR3L-1333 up to 8 GB | |
| Display |
Integrated Intel HD Graphics (1) VGA & (1) HDMI outputs onboard 18/24-bit LVDS interface |
|
| Ethernet | Dual Gigabit Ethernet controllers | |
| SATA | (1) SATA3 & (1) mSATA | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (4) RS-232 & (2) RS-232/422/485 serial ports | |
| USB | (5) USB 2.0 & (1) USB 3.0 Ports | |
| Onboard Expansion | (1) PCI Express Mini Card Socket, (1) PCIe x1 | |
| Power Supply | 12 V DC or STD ATX | |
Ordering Information
| MBC-4506A2GNL | Intel Bay Trail-D Celeron J1900 mini ITX SBC, VGA / HDMI / LVDS, Dual Gigabit LAN, USB 3.0, PCIe x1, PCI express mini-card and HD Audio | |
|---|---|---|
Recommended Configuration
| Chassis | ||
|---|---|---|
| Wallmount System | WMC-103M | |
| Rackmount System | NDS-102M | |
