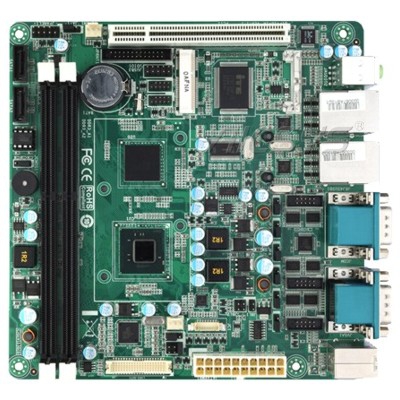

Product Name : MBC-4503
Product Description
- Mini-ITX Motherboard
- Supports Intel Atom dual core processor
- Dual Gigabit Ethernet supported
- (6) COM and (7) USB 2.0 ports
- PCI Express mini card socket
- LVDS interface
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | Onboard Intel Atom D525 @ 1.8 GHz dual core CPU | |
|---|---|---|
| Chipset | Intel NM10 chipset | |
| System Memory | (2) 240-pin DIMM supports DDR3 800 up to 4 GB | |
| Display |
Integrated Intel GMA3150 Graphics onboard 18/24-bit LVDS interface |
|
| Ethernet | Dual Gigabit Ethernet controllers | |
| IDE | None | |
| SATA | (2) SATA Interfaces with 300 MBps transfer rate | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (6) RS-232 serial ports with+5V / +12V | |
| USB | (7) USB 2.0 Ports | |
| Onboard Expansion | (1) PCI Express Mini Card Socket, (1) PCI | |
Ordering Information
| MBC-4503A2GNL | Intel dual core Atom Mini-ITX motherboard with onboard VGA, 18/24-bit LVDS, dual Gigabit LAN | |
|---|---|---|
Recommended Configuration
| Chassis | ||
|---|---|---|
| Wallmount System | WMC-103M | |
| Rackmount System | NDS-102M | |
