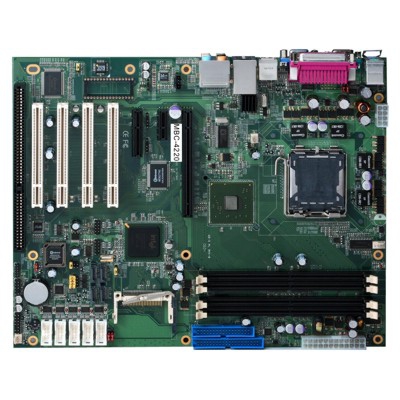

Product Name : MBC-4220
Product Description
- Industrial ATX Motherboard
- Supports Intel LGA775 Core 2 Duo Processors
- Intel 945G & ICH7R Chipset
- Supports DDR2 533/667 up to 4 GB
- PCI Express Gigabit Ethernet
- Integrated Intel 945G VGA
- Supports Watchdog Timer
Additional Files
Product Information
| CPU | LGA775 socket supports Intel Core 2 Duo / Pentium D / Pentium 4 / Celeron D CPU with FSB 533/800/1066 MHz (Extreme Edition is not supported) | |
|---|---|---|
| Chipset | Intel 945G + ICH7R Chipset | |
| System Memory | (4) DDR2 sockets , up to 4 GB PC533/667 DDR SDRAM | |
| Display | Intel 945G built-in GMA950 3D Graphics | |
| Ethernet | Marvel E8053 PCI Express Gigabit LAN | |
| IDE | (1) Enhanced IDE supports 2 IDE devices | |
| SATA | (4) SATA2 ports, 300 MB/s, ICH7R supports RAID 0, 1, 5, 10 and Intel Maxtrix storage technology | |
| Audio | Integrated High Definition Audio Codec | |
| Serial Port | (1) RS-232/422/485 and (5)RS-232 serial ports | |
| USB | (8) USB 2.0 ports | |
| Onboard Expansion | (1) PCI Express x16, (1) PCI Express x4, (1) PCI Express x1, (4) PCI, (1) ISA | |
Ordering Information
| MBC-4220AGN | LGA775 Intel 945G ATX Motherboard with VGA, PCI express, Gigabit LAN | |
|---|---|---|
Recommended Configuration
| Chassis | ||||
|---|---|---|---|---|
| Rackmount System | 2U | 3U | 4U | 6U |
| RCK-204M RCK-204MA RCK-204MF RCK-204ML RCK-206M |
RCK-308MA RCK-309M |
RCK-402M RCK-403M RCK-405M RCK-406M RCK407-MA RCK-410M RCK-410MA RCK-413M |
RCK-606/608 | |
| Wallmount System | WMC-704M WMC-710M |
|||
