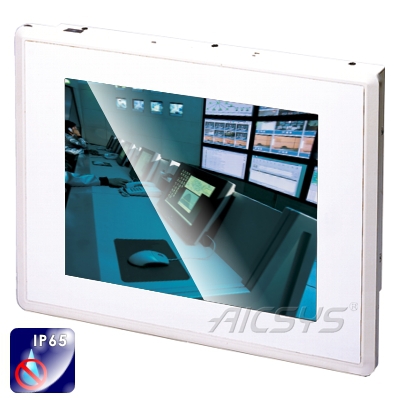

Product Name : LPC-121T
Product Description
- Supports Intel Atom Low Power Processor
- 12" High Quality LCD Touch Panel
- IP65 protection on front bezel
- Dual Gigabit Ethernet
- Hardware monitor, Watchdog Timer
Additional Files
Product Information
| CPU | Integrated Intel Atom processor N270 @ 1.6GHz with a 533 MHz system bus | |
|---|---|---|
| Memory | One 240-pin un-buffered DDR2 DIMM up to 2GB | |
| LAN | Built-in Dual Gigabit Ethernet controllers | |
| Audio | Built-in AC97 Audio Codec | |
| LCD Display Size | 12" | |
| LCD Display Resolution | 12.1" TFT SVGA(800 x 600) LCD; XGA (1024 x 768) is optional | |
| Drive Bays | (1)2.5" HDD drive bay | |
| Power Supply | DC Jack 12 V Power input | |
| Dimensions |
304 (W) x 234 (H) x 57.2 (D) mm 11.97 (W) x 9.21 (H) x 2.25 (D) inches |
|
| Gross Weight | 4.3 kg | |
Ordering Information
| LPC-121T | 12.1" LCD Panel with Intel Atom N270, IP65 front Bezel, Touch Screen, VGA, Gigabit LAN, Audio | |
|---|---|---|
