AICSYS => Products => LCD & KVM Products => LCD & Keyboard Products => LCD & Keyboard Drawers => Cyclops-G151

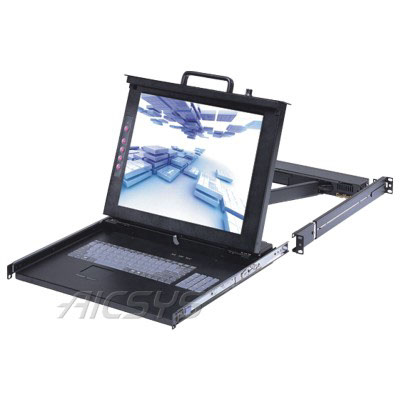

Product Name : CYCLOPS-G151
Product Description
- Standard 19" Rackmount LCD Keyboard Drawer
- 15"/17"/19"/20.1" TFT LCD Display
- Industrial Grade 106-key keyboard and touchpad
- Optional USB Touchscreen
- Optional USB port, Cherry Keyboard with Integrated Trackball and SUN System
- Rail-Lock Switch for maximum safety
- OSD menu for optimal display quality control
- New rail design to enable single person to install the console into the rack
- Built-In low power consumption power supply
Additional Files
Product Information
| CYCLOPS-G151 | CYCLOPS-G171 | CYCLOPS-G191 | |
|---|---|---|---|
| Display Size | 15" | 17" | 19" |
| Resolution | 1024x768 | 1280x1024 | 1280x1024 |
| Connector |
15pin DB type VGA or Optional DVI Interface PS/2 keyboard and PS/2 mouse connectors Optional one USB interface for keyboard and mouse |
||
| Keyboard and Mouse |
PS/2 106 keys keyboard with touch pad (Optional Cherry keyboard and integral industrial trackball and SUN systems) |
||
| Power Supply |
Industrial level Auto-switching power supply for 85V-264V AC Input Optional DC power input for 12V DC, 24V DC and 48V DC. |
||
| On-Screen Control |
Auto adjustment, brightness contrast, phase, H-V position, frequency, size and display mode. Automatic and Manual Scan mode. |
||
| Drawer Design | Full extension high load rating slide rail with rail-lock safety switch. Rail design enables single person to do the installation. | ||
| Dimensions | 447.5 (W) x 482 (D) x 43.8 (H) mm | 447.5 (W) x 532.44 (D) x 43.8 (H) mm | |
| Weight | 15.8 kg / 34.8 lb | 17 kg / 37.4 lb | 19 kg / 41.88 lb |
Ordering Information
| Display Size | Display Interface | Keyboard and Mouse | Interface | |
|---|---|---|---|---|
| CYCLOPS-G151 | 15" | DB 15 VGA | Industrial Slim Keyboard and Touchpad | PS/2 |
| CYCLOPS-G151U | Industrial Slim Keyboard and Touchpad | USB | ||
| CYCLOPS-G151C | Cherry keyboard and trackball | PS/2 | ||
| CYCLOPS-G151T | CYCLOPS-G151 with USB interface Touchscreen | USB | ||
| CYCLOPS-G151S | Industrial Sun System Keyboard and Touchpad | PS/2 | ||
| CYCLOPS-G151D | DVI | CYCLOPS-G151 with DVI interface input | PS/2 | |
| CYCLOPS-G151DU | DVI | CYCLOPS-G151 with DVI interface input | USB | |
| CYCLOPS-G171 | 17" | DB 15 VGA | Industrial Slim Keyboard and Touchpad | PS/2 |
| CYCLOPS-G171U | Industrial Slim Keyboard and Touchpad | USB | ||
| CYCLOPS-G171C | Cherry Keyboard and Trackball | PS/2 | ||
| CYCLOPS-G171T | CYCLOPS-G171 with USB interface Touchscreen | USB | ||
| CYCLOPS-G191 | 19" | DB 15 VGA | Industrial Slim Keyboard and Touchpad | PS/2 |
| CYCLOPS-G191U | Industrial Slim Keyboard and Touchpad | USB | ||
| CYCLOPS-G191C | Cherry Keyboard and Trackball | PS/2 | ||
| CYCLOPS-G191T | CYCLOPS-G191 with USB interface Touchscreen | USB | ||
| CYCLOPS-G201 | 20.1" | DB15 VGA | Industrial Slim Keyboard and Touchpad | PS/2 |
