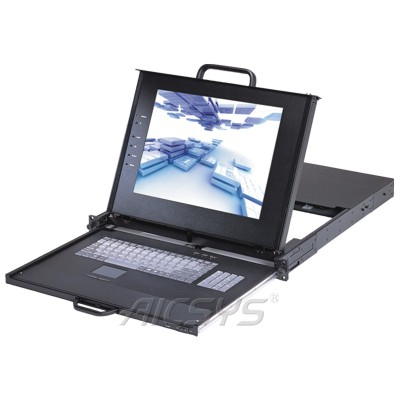

Product Name : CYCLOPS-B151
Product Description
- Standard 19" Rackmount LCD Monitor
- 15" / 17" /19" TFT LCD Display
- Industrial grade 106-key keyboard and touchpad
- Separate tracks for keyboard and LCD Panel
- On Screen Display (OSD) enable easy adjustment
- Low power consumption
- Optional SUN system, USB and Cherry keyboard and trackball supported
Additional Files
Product Information
| Display Size | 15" | 17" | 19" |
|---|---|---|---|
| Resolution | XGA 1024x768 | SXGA 1280x1024 | SXGA 1280x1024 |
| Connector |
15 pin DB typeVGA or Optional DVI Interface PS/2 keyboard and PS/2 mouse connectors Optional oune USB interface for kryboard & mouse |
||
| Keyboard and Mouse | PS/2 106 keys keyboard with touch pad (optional Cherry keyboard and trackball) | ||
| Power Supply | Industrial level Auto-switching power supply for 85V-264V AC Input | ||
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size and display mode | ||
| Drawer Design | Full extension high load rating slide rail. Two separate tracks for panel and keyboard enables independent extraction of either panel or keyboard alone | ||
| Dimensions |
443.5 (W) x 450 (D) x 44 (H) mm 17.5 (W) x 17.7 (D) x 1.7 (H) inches |
443.5 (W) x 450 (D) x 44 (H) mm 17.5 (W) x 17.7 (D) x 1.7 (H) inches |
443.5 (W) x 511.3 (D) x 44 (H) mm 17.5 (W) x 20.1 (D) x 1.7 (H) inches |
| Weight | 15.5 kg / 34 lb | 16.4 kg / 36 lb | 19 kg / 41.8 lb |
Ordering Information
| Display Size | Display Interface | Keyboard & Mouse | Interface | |
|---|---|---|---|---|
| CYCLOPS-B151 | 15" | DB15 VGA | Industrial slim keyboard and touchpad | PS/2 |
| CYCLOPS-B151U | Industrial slim keyboard and touchpad | USB | ||
| CYCLOPS-B151C | Cherry keyboard and touchpad | PS/2 | ||
| CYCLOPS-B171 | 17" | DB15 VGA | Industrial slim keyboard and touchpad | PS/2 |
| CYCLOPS-B171D | DVI | Industrial slim keyboard and touchpad | PS/2 | |
| CYCLOPS-B171U | DB15 VGA | Industrial Slim keyboard and touchpad | USB | |
| CYCLOPS-B171C | DB15 VGA | Cherry keyboard and touchpad | PS/2 | |
| CYCLOPS-B171S | DB15 VGA | Industrial SUN system keyboard and touchpad | PS/2 | |
| CYCLOPS-B191 | 19" | DB15 VGA | Industrial slim keyboard and touchpad | PS/2 |
| CYCLOPS-B191D | DVI | Industrial slim keyboard and touchpad | PS/2 | |
| CYCLOPS-B191U | DB15 VGA | Industrial Slim keyboard and touchpad | USB | |
| CYCLOPS-B191S | DB15 VGA | Industrial SUN system keyboard and touchpad | PS/2 |
