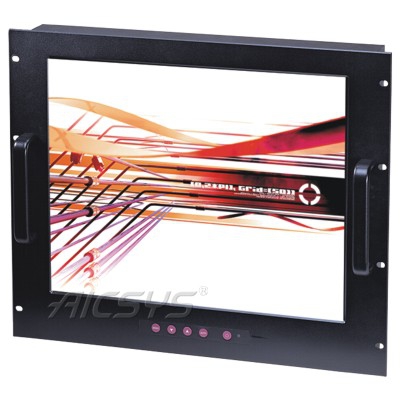

Product Name : AURORA-B
Product Description
- Standard 19" Rackmount LCD Monitor
- 15" / 17" / 19" TFT LCD Display protected by tempered glass
- High Contrast ratio and Wide-viewing angle
- 4-CCFL backlit lamps for high display quality
- On Screen Display (OSD) enable easy adjustment
- Low power consumption
- Optional Touch-screen function
- 12V, 24V & 48V DC Power input available
Additional Files
Product Information
| AURORA-B815 | AURORA-B817 | AURORA-B919 | |
|---|---|---|---|
| Display Size | 15" | 17" | 17" |
| Resolution | XGA 1024x768 | SXGA 1280x1024 | SXGA 1280x1024 |
| Pixel Pitch | 0.297mmx0.297mm | 0.264mmx0.264mm | 0.098mmx0.294mm |
| Viewing Angle | R-L view 130º U-D view 100º |
R-L view 60º - 70º U-D view 45º - 60º |
R-L view 140º U-D view 140º |
| Contrast Ratio | 400:1 | 450:1 | 500:1 |
| Brightness | white 300cd/m2 | ||
| Interface | DB15 VGA Port | ||
| Dimensions |
482.6 (W) x 354.6 (D) x 61 (H) mm 18.9 (W) x 13.9 (D) x 2.4 (H) inches |
482.6 (W) x 396 (D) x 61 (H) mm 18.9 (W) x 15.6 (D) x 2.4 (H) inches |
|
| Weight | 14.7kgs / 32.4lbs | 15.2kgs / 33.5lbs | 18.2kgs / 40.1lbs |
Ordering Information
| AURORA-B815 | 15" TFT LCD Monitor - Black | ||
|---|---|---|---|
| AURORA-B815T | 15" TFT LCD Monitor with Resistive Touch Screen - Black | ||
| AURORA-B815D | 15" TFT LCD Monitor with with VGA and DVI inputs - Black | ||
| AURORA-B815-D24 | 15" TFT LCD Monitor with with 24V DC Power input - Black | ||
| AURORA-B817 | 17" TFT LCD Monitor - Black | ||
| AURORA-B817T | 17" TFT LCD Monitor with Resistive Touch Screen - Black | ||
| AURORA-B817D | 17" TFT LCD Monitor with with VGA and DVI inputs - Black | ||
| AURORA-B817-D24 | 17" TFT LCD Monitor with with 24V DC Power input - Black | ||
| AURORA-B919 | 19" TFT LCD Monitor - Black | ||
| AURORA-B919T | 19" TFT LCD Monitor with Resistive Touch Screen - Black | ||
| AURORA-B919D | 19" TFT LCD Monitor with with VGA and DVI inputs - Black | ||
| AURORA-B919-D24 | 19" TFT LCD Monitor with with 24V DC Power input - Black | ||
