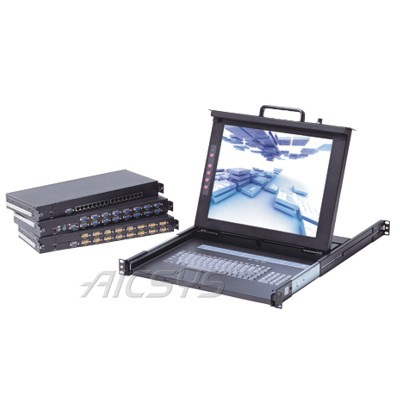

Product Name : HERCULES-G Series
Product Description
- 1U 8/16-port KVM unit with 15"/17"/19" LCD Drawer
- Supports PS/2 and USB Keyboard/Mouse
- Push button OSD and Hotkey Port Selection
- One multi-port for additional KVM switch module
- On Screen Display (OSD) enable easy adjustment
- Rail-Lock Switch for maximum safety
- New rail design to enable single person to install the console into the rack
Additional Files
Product Information
| LCD Display Size | 15"/17"/19" | ||
|---|---|---|---|
| Resolution | Up to 1600 x 1200 | ||
| Connector |
DB-15VGA, PS/2 keyboard & PS/2 mouse connectors USB port for keyboard & mouse One multi-port for additional KVM switch module |
||
| KVM Switch | Optional Replacable KVM Switch Module | ||
| Keyboard and Mouse | PS/2 106 keys keyboard with touch pad (Optional Cherry keyboard and trackball) | ||
| Power Supply | Industrial level Auto-switching power supply for 85V-264V AC Input | ||
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size and display mode | ||
| Drawer Design |
Full extension high load rating slide rail with rail-lock safety switch Rail design enables single person to do the installation |
||
| Dimensions |
15"/17" : 470 (W) x 447 (D) x 43.2 (H) mm; 18.5 (W) x 17.6 (D) x 1.7 (H) inches 19" : 520 (W) x 447 (D) x 43.2 (H) mm; 24.5 (W) x 17.6 (D) x 1.7 (H) inches |
||
| Gross Weight |
15": 19.5 kg / 43.0 lb 17": 20.5 kg / 45.2 lb 19": 21.5 kg / 47.4 lb |
||
Ordering Information
| LCD Display Size | Keyboard & Mouse | |||
|---|---|---|---|---|
| HERCULES-G151F | 15" | Industrial slim keyboard and touchpad (PS/2 & USB Port) | ||
| HERCULES-G151S | SUN System keyboard and touchpad (USB Port) | |||
| HERCULES-G151C | Cherry keyboard and touchpad (PS/2 Port) | |||
| HERCULES-G171F | 17" | Industrial slim keyboard and touchpad (PS/2 & USB Port) | ||
| HERCULES-G171S | SUN System keyboard and touchpad (USB Port) | |||
| HERCULES-G171C | Cherry keyboard and touchpad (PS/2 Port) | |||
| HERCULES-G191F | 19" | Industrial slim keyboard and touchpad (PS/2 & USB Port) | ||
| HERCULES-G191S | SUN System keyboard and touchpad (USB Port) | |||
| HERCULES-G191C | Cherry keyboard and touchpad (PS/2 Port) | |||
| MY-8D | 8-port PS/2 KVM switch module | |||
| MY-16D | 16-port PS/2 KVM switch module | |||
| VS-8D | 8-port Combo-free KVM switch module, supports PS/2 and USB | |||
| VS-16D | 16-port Combo-free KVM switch module, supports PS/2 and USB | |||
| MS-8D | 8-port CAT5 KVM switch module, supports PS/2 and USB | |||
| MS-16D | 16-port CAT5 KVM switch module, supports PS/2 and USB | |||
